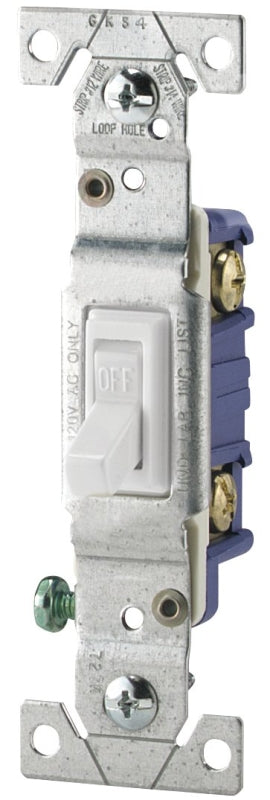

Eaton Wiring Devices Series Toggle Switch, White, 15 A, 120 V, 4.2 in L x 1.3 in W x 1.103 in D Dimension

Eaton Wiring Devices Series Toggle Switch, White, 15 A, 120 V, 4.2 in L x 1.3 in W x 1.103 in D Dimension

Eaton Wiring Devices Series Toggle Switch, White, 15 A, 120 V, 4.2 in L x 1.3 in W x 1.103 in D Dimension

Regular price $2.99
/
  • Free worldwide shipping
  • Free returns
  • Carbon neutral
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon

Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for Feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.

Features

  • Push-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wire
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
  • Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
  • Wire looper speeds termination of both #14 and #12 AWG wire

Specifications

  • Action: Toggle
  • Actuator Type: Toggle
  • Color: White
  • Current Rating: 15 A
  • Dielectric Strength: 1500 V
  • Dimensions: 4.2 in L x 1.3 in W x 1.103 in D
  • Housing Material: Polycarbonate
  • Mounting Type: Wall
  • Number of Poles: 1
  • Temperature Rating: -20 to 60 deg C
  • Terminal Type: Push-In
  • Voltage Rating: 120 V
  • Wattage Rating: 0.5 hp
  • Model: 1301-7W
  • Weight: 0.08 lb
