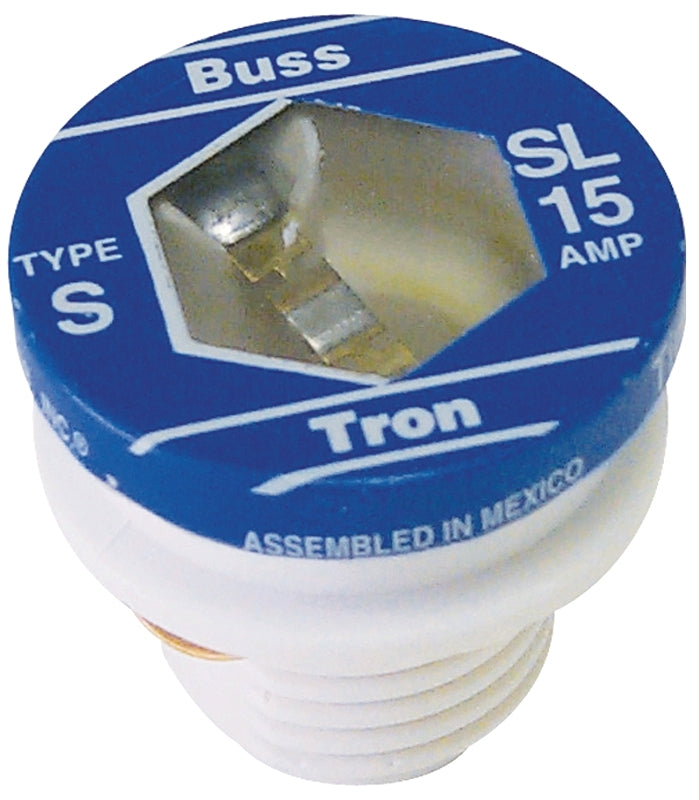

Threaded fuse type, porcelain threads. Heat absorbing metal bead on element link for time delay. Passes motor overload starting currents without needlessly opening. Voltage rating of 125 V maximum. Rejection base. UL Listed.

Features

• Medium-duty time delay rejection base fuse
• Has ability to withstand typical motor starting surges
• Use in residential or light-duty motor circuits
• These fuses thread into SA adapters

Specifications

• Current Rating: 15 A
• Element Type: Single
• Fuse Type: Low-Voltage Time Delay
• Interrupt Rating: 10 kA
• Length: 1-1/4 in
• Rejection/Non-Rejection: Rejection
• Voltage Rating: 125 V
• Model: SL-15PK4
• Weight: 0.17 lb
