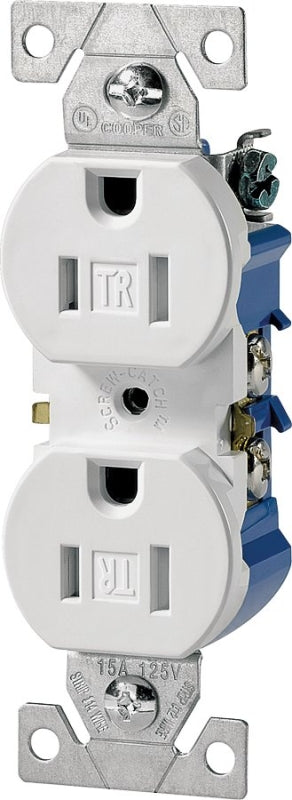

Receptacles provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready-to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.

Features

• Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
• TR designation provides visual identification
• Longer, wider strap provides 40% more contact area to wallboard
• Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
• Push-in terminals accept #14 AWG solid wire for quick installation
• Patented built-in wire looper for pre-looping
• High-impact-resistant thermoplastic face and back body eliminates breakage
• Double-wipe ground contacts ensure long term ground retention
• Easy access split circuit break off tab
• Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility

Specifications

• Color: White
• Current Rating: 15 A
• Dimensions: 1.24 in L x 0.79 in W x 4 in H
• Frequency Rating: 60 Hz
• Material: Thermoplastic
• Mounting Type: Flush
• NEMA Configuration: 5-15R
• Number of Poles: 2
• Number Of Wires: 3
• Operating Temperature: -20 to 60 deg C
• Voltage Rating: 125 V
• Wire Size: 14 to 10 AWG
• Wiring Type: Push Side
• Model: TR270W
• Weight: 0.14 lb
